詳細說明
HIWIN直線導軌 選用準則：
1.使用條件設定
○ 應用之設備 ○ 行程
○ 內部空進之限制 ○ 運行速度、加速度
○ 精度之要求 ○ 使用頻率
○ 剛性之要求 ○ 使用環境
○ 負荷方式 ○ 要求壽命年限
2.臺灣上銀直線導軌各系列的應用
○ HG系列：磨床、銑床、車床、鉆床、綜合加工機、放電加工機、搪床、線切割機、精密量測儀器、木工機器、搬運機器、運送裝置。
○ EG系列：產業自動化機器、半導體機械、雷射雕刻機、包裝機器。
○ MGN/MGW系列：印表機、機器手臂、電子儀器設備、半導體設備。
3.選用精度等級
○ C,H,P,SP,UP等級視設備精度要求而定
4.假定滑塊尺寸及數目
○ 依經驗選用
○ 負荷狀態
○ 若與滾珠螺桿配合使用，則使用之直線導軌規格與螺桿外徑相似，如螺桿外徑為35mm則選用HG35規格
5.計算滑塊最大負荷
○ 參照負荷計算例計算單個滑塊最大等效負荷
○ 確認選用之直線導軌靜安全系數應超過靜安全系數使用表所列之值
6.選擇預壓力
○ 依剛性要求及安裝面精度選用
7.確認剛性
○ 參照剛性表計算變形量 提高預壓力，加大選用尺寸或滑塊數以提高剛性
8.計算使用壽命
○ 依使用速度、頻率計算壽命距離要求 依壽命公式計算選定直線導軌之壽命距離
9.潤滑選用
○ 潤滑劑選用，依設備需求可選擇潤滑脂、潤滑油或特殊潤滑劑潤滑定期注入潤滑脂或自動供油

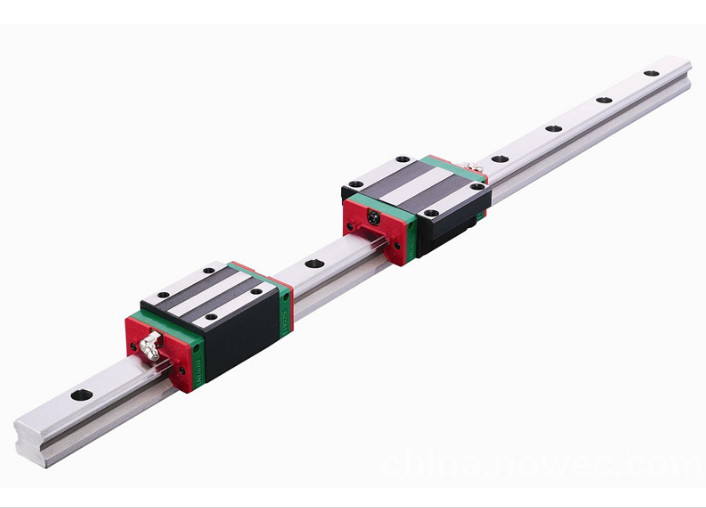

HGW30CC/HGW30HC導軌優點及特點：
1.上銀直線導軌定位精度高
2.上銀導軌磨耗少能長時間維持精度
3.上銀直線導軌適用高速運動且大幅降低機臺所需驅動馬力
4.臺灣上銀導軌可同時承受上下左右方向的負荷
5.上銀導軌組裝容易并具互換性
6.上銀滑塊潤滑構造簡單
HG系列-重負荷型滾珠線性導軌（高組裝） HGH標準 HGL低四方型 HGW法蘭型
HGH15CA HGH20CA HGH20HA HGH25CA HGH25HA HGH30CA HGH30HA HGH45CA HGH45HA HGH55CA HGH55HA HGH65CA HGH65HA
HGL15CA HGL25CA HGL25HA HGL30CA HGL35GA HGL45CA HGL45HL HGL55CA HGL55HA
HGW15CA HGW20CA HGW20HA HGW25CA HGW25HA HGW30CA HGW30HA HGW45CA HGW45HA HGW55CA HGW55HA HGW65CA HGW65HA
HGW15CB HGW20CB HGW20HB HGW25CB HGW25HB HGW30CB HGW30HB HGW45CB HGW45HB HGW55CB HGW55HB HGW65CB HGW65HB
HGW15CC HGW20CC HGW20HC HGW25CC HGW25HC HGW30CC HGW30HC HGW45CC HGW45HC HGW55CC HGW55HC HGW65CC HGW65HC
RG系列-滾柱型線性導軌 RGH四方型 RGL低四方型 RGW法蘭型
RGH15CA RGH20CA RGH20HA RGH30CA RGH30HA RGH35CA RGH35HA RGH45CA RGH45HA RGH55CA RGH55HA RGH65CA RGH65HA
RGL15CA RGL20CA RGL20HA RGL30CA RGL30HA RGL35CA RGL35HA RGL45CA RGL45HA RGL55CA RGL55HA
RGW15CC RGW20CC RGW20HC RGW30CC RGW30HC RGW35CC RGW35HC RGW45CC RGW45HC RGW55CC RGW55HC RGW65CC RGW65HC
EG系列-低組裝滾珠線性導軌
EGH15SA EGH15CA EGH20SA EGH20CA EGH25SA EGH25CA EGH30SA EGH30CA EGH35SA EGH35CA
EGW15SA EGW15CA EGW20SA EGW20CA EGW25SA EGW25CA EGW30SA EGW30CA EGW35SA EGW35CA
EGW15SB EGW15CB EGW20SB EGW20CB EGW25SB EGW25CB EGW30SB EGW30CB EGW35SB EGW35CB
MG系列-微小型滾珠線性滑軌 MGN 四方型 MGW 法蘭型
MGN5C MGN7C MGN7H MGN9C MGN9H MGN12C MGN12H MGN15C MGN15H
MGW5C MGW7C MGW7H MGW7C MGW9H MGW12C MGW12H MGW15C MGW15H
QH系列-靜音式重負荷型滾珠線性導軌
QHH15CA QHH20CA QHH20HA QHH25CA QHH25HA QHH30CA QHH30HA QHH35CA QHH35HA QHH45CA QHH45HA
QHW15CA QHW20CA QHW20HA QHW25CA QHW25HA QHW30CA QHW30HA QHW35CA QHW35HA QHW45CA QHW45HA
QHW15CB QHW20CB QHW20HB QHW25CB QHW25HB QHW30CB QHW30HB QHW35CB QHW35HB QHW45CB QHW45HB
?QHW15CC QHW20CC QHW20HC QHW25CC QHW25HC QHW30CC QHW30HC QHW35CC QHW35HC QHW45CC QHW45HC
QR系列-靜音工滾柱型線性導軌
QRH20CA QRH25CA QRH25HA QRH30CA QRH30HA QRH35CA QRH35HA QRH45CA QRH45HA
QRL20CA QRL25CA QRL25HA QRL30CA QRL30HA QRL35CA QRL35HA QRL45CA QRL45HA
QRW20CC QRW25CC QRW25HC QRW30CC QRW30HC QRW35CC QRW35HC QRW45CC QRW45HC
QE系列-靜音式低組裝型線性導軌
QEH15SA QEH15CA QEH20SA QEH20CA QEH25SA QEH25CA QEH30SA QEH30CA QEH35SA QEH35CA
QEW15SA QEW15CA QEW20SA QEW20CA QEW25SA QEW25CA QEW30SA QEW30CA QEW35SA QEW35CA
QEW15SB QEW15CB QEW20SB QEW20CB QEW25SB QEW25CB QEW30SB QEW30CB QEW35SB QEW35CB
WE系列-寬幅型滾珠線性導軌
WEH17CA WEH21CA WEH27CA WEH35CA WEH50CA
WEW17CC WEW21CC WEW27CC WEW35CC WEW50CC
CG系列-抗扭矩型滾珠線性導軌
CGH15CA CGH20CA CGH20HA CGH25CA CGH25HC CGH30CA CGH30HA CGH35CA CGH35HA CGH45CA CGH45HA
CGW15CC CGW20CC CGW20HC CGW25CC CGW25HC CGW30CC CGW30HC CGW35CC CGW35HC CGW45CC CGW45HC
